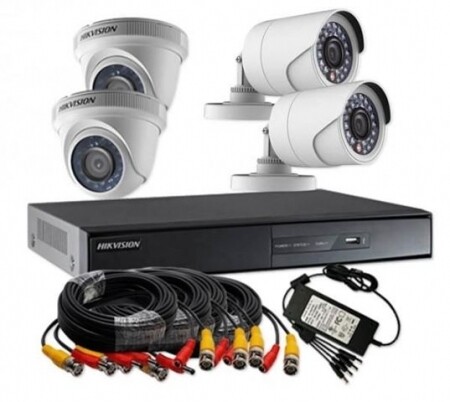

Hikvision 8 Channel DVR with 8 CCTV Bullet Camera Standalone Kit Without Hard Disk

8-ch 1080p Lite 1U H.264 DVR
8 channels and 1 HDD 1U DVR
H.264+ / H.264 video compression
Encoding ability up to 1080p lite@ 12 fps

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 10 network cameras can be connected
1 x DVR power supply
4 x Dome cameras - DS-2CE56C0T-IRM
4 x Bullet Cameras - DS-2CE16C0T-IR
1 x Camera Power supply
8 x 20 Meter camera cables, all connectors are pre fitted

SKU / Product Code: 06100Category: Products • Video Surveillance Systems • HD TVI complects

• Recording
• Video compressionH.264+/H.264
• Encoding resolutionWhen 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
• Frame rateMain stream: ,When 1080p lite mode enabled:,1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N),When 1080p lite mode not enabled:,For 720p stream access:,720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N),For SD stream access: ,WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,CIF/QVGA/QCIF@25fps (P)/30fps (N)
• Video bit rate32 Kbps to 4 Mbps
• Dual streamSupport
• Stream typeVideo, Video & Audio
• Audio compressionG.711u
• Audio bit rate64 Kbps

• Video and Audio
• IP video input2-ch (up to 10-ch) Up to 960p resolution Support H.264+/H.264 IP cameras
• Analog video input8-ch BNC interface (1.0 Vp-p, 75 Ω)
• Turbo HD input1080p25, 1080p30, 720p25, 720p30
• AHD input1080p25, 1080p30, 720p25, 720p30
• HDCVI input1080p25, 1080p30, 720p25, 720p30
• CVBS inputSupport
• Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio output1-ch, RCA (Linear, 1 KΩ)
• Two-way audioReuse the first audio input
• Synchronous playback8-ch
• VGA/HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Network
• Remote connections128
• Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network interface1, RJ45 10M/100M self-adaptive Ethernet interface

• Auxiliary interface
• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk
• Alarm in/outN/A
• USB interfaceRear panel: 2 × USB 2.0

• General
• Power supply12 VDC
• Consumption (without HDD)≤ 12 W
• Working temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity10% to 90%
• Dimensions (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
• Weights (without HDD)≤ 1 kg (2.2 lb)
