Dahua Multi-language Apartment IP Video Intercom KIT, VTO6531H & VTH2621G-P,support RFID Face Code unlock,door phone,SIPdoorbell
SKU SD12210000211195-1
788 352 FCFA
Color
Ships From
In stock: 8 available
1
Dahua Multi-language Apartment IP Video Intercom KIT, VTO6531H & VTH2621G-P,support RFID Face Code unlock,door phone,SIPdoorbell
Product Details
UPC: 4890093898020
Weight: 0.30 kg
If you want to control the second lock, you need to order a DEE1010B
Support Language:
English, Russian, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Ukrainian, Arabic, Bulgarian, Czech, Danish, Finnish, Greek, Hungarian, Latvian, Lithuanian, Romanian, Hebrew, Japanese, Korean, Thai,Serbian, Slovak, Slovenian, Vietnamese, Turkish, Portuguese (Brazil), Spanish (Latin America);

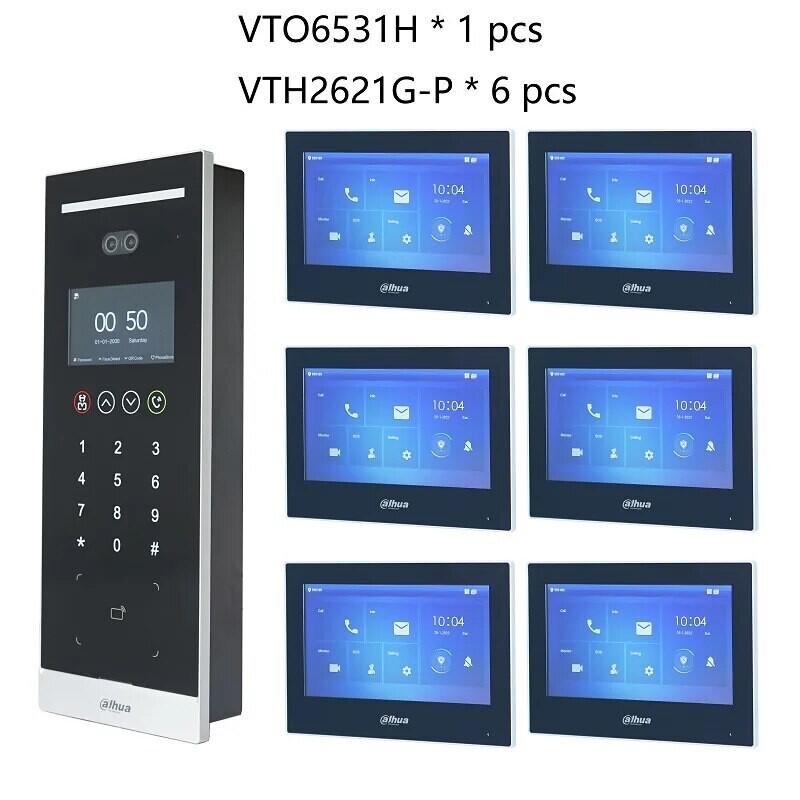

Door Station model: VTO6531H
VTO6531H
Face Recognition Door Station
> 4.3 inch IPS display; screen resolution 800×480
> 2MP CMOS; true WDR
> Face-camera distance: 0.3 m–2 m; human height: 1.1 m–2.4 m (lens ground distance: 1.4 m)
> Touch button; IP65
> Operating temperature: -30°C to +60°C
> Auto light illumination reduces light pollution
> Multiple unlock modes: Password unlock, IC card unlock, remote unlock and face unlock
> Support 20, 000 users, 10,000 face images, and 10, 000 cards
> Face recognition speed: 0.2 second per person
> Support liveness detection
> Support full duplex; management platform, and voice call through APP
> Support SIP server, and can manage 200 indoor monitors at most
> Support duress alarm, tamper alarm, and door sensor timeout alarm
> Various unlock status display modes protect user privacy
|
System |
|
|
Main Processor |
Embedded processor |
|
Operating System |
Embedded Linux operating system |
|
Button Type |
Touch button |
|
Network Protocol |
SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP |
|
ROM |
4GB |
|
RAM |
1GB |
|
Basic |
|
|
Display Screen |
4.3 inch IPS screen |
|
Resolution |
800×480 |
|
Camera |
1/2.7" 2MP CMOS high definition, low illumination, |
|
Field of View |
Horizontal: 87.42°; vertical: 46.48 °; |
|
diagonal: 104.13° |
|
|
Focal Length |
4.0 mm |
|
Aperture |
F1.6 |
|
WDR |
120dB |
|
Noise Reduction |
3D noise reduction |
|
Video Compression |
H.264 |
|
Video Resolution |
Main Stream: 720p, sub stream: 1080P |
|
Frame Rate |
Main Stream (720P@25fps), sub stream (1080P@25fps) |
|
Main Stream (720P@30fps), sub stream (1080P@30fps) |
|
|
Video Bit Rate |
256Kbps–2048Kbps |
|
Light Compensation |
Auto white light Auto IR light |
|
Day/Night |
ICR auto switch |
|
Audio Compression |
G.711u |
|
Audio Input |
1 |
|
Audio Output |
Built-in speaker |
|
Audio Mode |
Full duplex communication |
|
Audio Enhancement |
Echo suppression and cancellation/digital noise reduction |
|
Audio Bit Rate |
16KHz, 16Bit |
|
Function |
|
|
Communication Mode |
Full digital |
|
Unlock Mode |
Card/Remote/Password/Face unlock |
|
Card Reading Type |
IC card |
|
Motion Detection |
Video motion detection |
|
Auto Snapshot |
Yes |
|
Leave Videos or Text Messages |
Yes |
|
Web Configuration |
Yes |
|
Performance |
|
|
Card Reading Distance |
1cm–5cm |
|
Issue Card Locally |
Yes |
|
Face Recognition Height Range |
1.1m–2.4m is recommended |
|
Face Recognition Distance |
0.3m–2cm |
|
Face Recognition Configuration |
Recognition threshold Facial profile angle |
|
Face Verification Accuracy |
99.50% |
|
Face Recognition Time |
0.2s |
|
Casing Material |
PC+ABS |
|
Capacity |
|
|
Card |
10,000 |
|
Face Image |
10,000 |
|
Port |
|
|
RS-485 |
1 |
|
Wiegand |
1 input port, 1 output port |
|
Electric lock |
1 |
|
Alarm Input |
2 (Digital quantity) |
|
Alarm Output |
2 (Digital quantity) |
|
Power Output |
1 12V/100mA |
|
Exit Button |
1 |
|
Door Status Detection |
1 |
|
Lock Control |
1, normally open by default |
|
Network |
1 RJ-45 10Mbps/100Mbps self-adaptive |
|
Alarm |
|
|
Tamper |
Yes |
|
General |
|
|
Unlock Password Mode |
User password/public password/duress password |
|
Color |
Silver |
|
Power Supply Mode |
DC 12V2A |
|
Power Supply |
Optional |
|
Installation |
Surface mount and Flush mount |
|
Certification |
CE/FCC |
|
Accessory |
Optional |
|
Product Dimensions |
388.5mm×145.5mm×43.5mm (15.30"×5.73"×1.71") |
|
Protection Grade |
IP65 (silicone sealant is needed, see the quick start guide) |
|
Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
|
Operating Humidity |
10RH%–90RH% (non-condensing) |
|
Operating Altitude |
86kPa–106kPa |
|
Power Consumption |
≤5W (standby), ≤18W (working) |
|
Net Weight |
1.0 kg (2.20 lb) |
|
Gross Weight |
1.29 kg (2.84 lb) |
Indoor Monitor model : VTH2621G-P
|
System |
|
|
Main Processor |
Embedded processor |
|
Operating System |
Embedded Linux operating system |
|
Network Protocol |
IPv4; FTP; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP; SIP |
|
Basic |
|
|
Screen Type |
Capacitive touchscreen |
|
Display |
7" TFT |
|
Screen Resolution |
1024 × 600 |
|
Audio Compression |
G.711a; G.711u; PCM |
|
Audio Input |
1 |
|
Audio Output |
Built-in speaker |
|
Audio Mode |
2-channel |
|
Audio Enhancement |
Echo suppression |
|
Audio Bit Rate |
16 kHz; 16 bit |
|
Function |
|
|
Communication Mode |
Full digital |
|
Information Release |
Receive and view text information released by the management center |
|
DND Mode |
Do not disturb period can be set; Do not disturb mode |
|
Number of Extensions |
Villa: 9 |
|
Apartment: 4 |
|
|
Performance |
|
|
Casing |
PC + ABS |
|
Port |
|
|
Alarm Input |
6 |
|
Alarm Output |
1 |
|
Power Output |
1 (12 V/200 mA) |
|
Door Bell |
Yes (use any alarm input port) |
|
Network |
One 10/100 Mbps Ethernet |
|
Alarm |
|
|
SOS |
Yes |
|
General |
|
|
Color |
White |
|
Power Supply |
12 VDC 1A; |
|
Standard PoE (36–57 V, 0.35 A) |
|
|
Installation |
Surface Mount |
|
Certifications |
CE; FCC |
|
Accessory |
Bracket and alarm ribbon cable (included) |
|
Dimensions |
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to 131 °F) |
|
Operating Humidity |
10%–95% RH (non-condensing) |
|
Operating Altitude |
Beneath 3,000 m (9,842.52 ft) |
|
Power Consumption |
Standby ≤ 2 W; working ≤ 6 W |
|
Net Weight |
0.34 kg (0.74 lb) |
|
Gross Weight |
0.58 kg (1.27 lb) |
