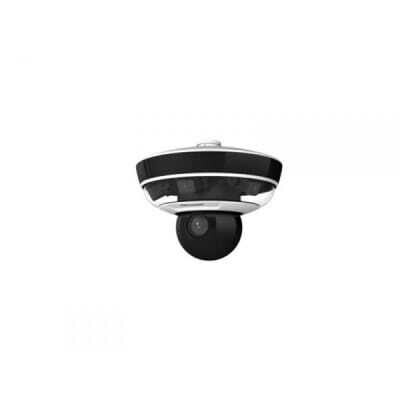

La mini série Hikvision DS-2PT5326IZ-DE (5-50 mm) (4 mm) est capable de
capturer des images à 240° avec des caméras panoramiques, ainsi que
des images en gros plan avec la caméra PTZ.
Fonctions du système
* Images panoramiques à 3 canaux dans différentes directions et
Image en gros plan à 1 canal
* Trois caméras flexibles sont réglables le long d'une
rail circulaire, plage de coulissement : 0° à 270°
* Trois caméras flexibles peuvent s'incliner et pivoter de 15° pour
55°° indépendamment
* Entrée audio 1 canal et sortie audio 1 canal
* Entrée d'alarme 1 canal et sortie d'alarme 1 canal, prise en charge de
le lien d'alarme
* Lien PTZ
* Emplacement pour carte mémoire intégré, prise en charge
microSD/SDHC/SDXC, jusqu'à 256 Go
* Prise en charge de l'API ouverte, d'ONVIF, d'ISAPI et de CGI, du SDK HIKVISION et de la plateforme de gestion
Tiers * Prise en charge de la compression vidéo H.265 * Caméra grand angle IP66 * Trois CMOS à balayage progressif 1/2,8" * Résolution jusqu'à 3 canaux 1920 x 1080 à 30 ips * Éclairage minimum : Couleur : 0,005 Lux @ (F1.6 , AGC ON) N/B : 0,001 Lux @ (F1.6, AGC ON) 0 Lux avec IR * FOV horizontal : 80,7° x 3 FOV vertical : 43,5°* Caméra PTZ Rayon IR jusqu'à 30 m * 1/2,8" progressif scanner CMOS * Résolution jusqu'à 1920 x 1080 à 30 ips * Min. Éclairage : Couleur : 0,005 Lux @ (F1.6, AGC ON) N/B : 0,001 Lux @ (F1.6, AGC ON) 0 Lux avec IR * Zoom optique 10x, zoom numérique 8x * Jusqu'à 50 m de distance IR DS -2PT5326IZ-DE (5-50 mm) (4 mm) Spécifications de la caméra PTZ réseau IR PanoVu Mini Series Caméra panoramique Capteur d'image Trois CMOS à balayage progressif 1/2,8" Couleur d'éclairage min. : 0,005 Lux @ (F1.6, AGC ON) B/ W : 0,001 Lux @ (F1.6, AGC ON) 0 Lux avec temps d'obturation IR 50 Hz : 1/1 s à 1/30 000 s 60 Hz : 1/ 1 s à 1/30 000 s Jour et nuit Gain du filtre anti-IR Auto /WDR manuel WDR numérique Amélioration intelligente de l'image HLC/BLC/3D DNR/Désembuage/Exposition régionale Balance des blancs Auto/Manuel/ATW suivi automatique des blancs)/Intérieur/Extérieur/Lampe fluorescente/Lampe au sodium Masque de confidentialité 4 x 3 Masque de confidentialité programmable Focal longueur 4 mm Plage d'ouverture F1.6 FOV Champ de vision horizontal : 80,7° x 3 Champ de vision vision verticale : 43,5°Rayon IR 30 m Caméra PTZ
1/2.8" Progressive Scan CMOS Image Sensor
Min lighting.
Colour: 0.005 Lux to (F1.6, AGC ON)
B/W: 0.001 Lux to (F1.6, AGC ON)
0 Lux with
50 Hz IR shutter time: 1 /1 sec to 1/30,000 sec
60 Hz: 1/1 sec to 1/30,000 sec
Day and night WDR anti-IR filter gain
automatic/manual
Digital WDR
HLC/BLC/DNR 3D Intelligent Image Enhancement/Defogging/Regional Exposure/Regional Focus
White balance
Auto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/
Fluorescent Lamp/Sodium Lamp
Privacy mask 8 programmable privacy masks
Digital zoom
8x Auto/Semi-Automatic/Manual Focus Mode
Focal length 4.7 mm to 47 mm, 10x optical zoom
Zoom speed About 2.5 s (optical, wide-angle - TV)
FOV
Horizontal field of view: 58.6° to 6.4° (wide-tele)
Vertical field of view: 35.1° to 3.6° (wide-tele)
Diagonal field: 7.4° to 65.6° (wide - TV)
Minimum working distance 10 mm to 1500 mm (wide - TV)
Aperture range F1.6 to F3.0 Range of
pan and tilt pan: 0° to 340° ; tilt: 0 Speed
90° pan and tilt
Pan speed: 0.1°/s to 60°/s (configurable), preset speed: 60°/s
Tilt speed: 0.1°/s to 60°/s (configurable), preset speed:
ROI The main flow and sub-flow support eight fixed zones respectively.
Video compression
(Sub-flow enabled)
Panoramic camera:
Main flow: H.265/H.264
Sub-flow: H.265/H.264
H.264 with main profile/high profile, H.265 with
main profile PTZ camera:
Main flow: H.265/H.264
Sub-stream: H.265/H.264/MJPEG H.264 with main profile/high profile, H.265 with video compression
main profile (sub-stream not activated) Pan camera: Main stream: H.265/H.264 H.264 with main profile/high profile, H.265 with main profile PTZ camera: Main stream: H.265/H.264/MJPEG H.264 with main profile/High profile, H.265 with main profile video rate from 256 Kbps to 8 192 Kbps
Alarm interface 1 channel alarm input and 1 channel alarm output Power supply
general 12 V DC and PoE+ (802.3 at, class 4) Max. 27 W (Max. 9 W for IR)
Operating temperature -30°C to 65°C (-22°F to 149°F), with heater on
Operating humidity 90%
Protection level IP66, TVS 4000 V Lightning protection, surge protection and protection
against voltage transients PC material and aluminum alloy Dimensions Φ 271.3 mm x 243.1 mm (Φ 10.68" x 9.57") Weight Approx. 3.2 kg (7.05 lb) Model available DS-2PT5326IZ-DE (5-50 mm)(4 mm), 12 VDC and PoE+ Dimensions 2 4 3 . 1 Φ 271,3 Unit: mm 0504111080424 Accessories DS-1602ZJ Wall mount bracket DS-1602ZJ-Vertical pole mount bracket DS-1602ZJ-Corner mount bracket DS-1661ZJ Hanging mount bracket
