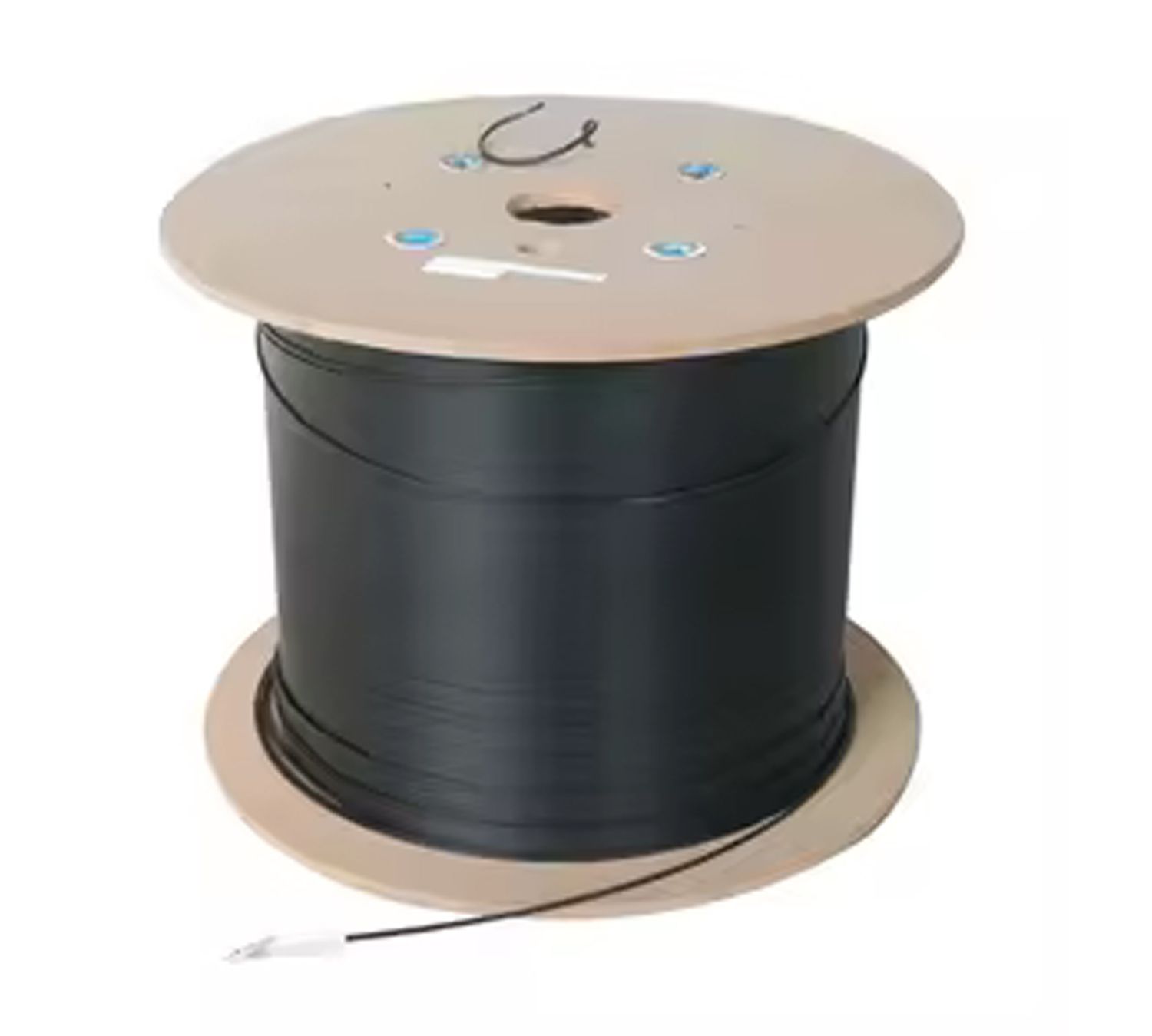

CABLE GYXTW 12 CORES MM OM4 with 1 tube 1km
SKU NH-GYXTW-12OM4
1 934 192 FCFA
On Sale
était 1 954 120 FCFA Save 1%
In stock
1
CABLE GYXTW 12 CORES MM OM4 with 1 tube 1km
Product Details
Marque: AZION
Model NO.
NH-GYXTW-12OM3
Connection Structure
Core to Core
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
>10000N
Core
Multicore
Certification
RoHS, CE, ISO9001, VDE, CCC
Brand
OEM
Sheath Material
PE
Packing Length
1-5km
Tensile Strength
1000n<10000n
Fiber Type
Single/Multimode
Max. Fiber Count Per Tube
288
Storage / Transport Temperature Range
-50ºC-+70ºC
Transport Package
Wooden Reel
Trademark
NH or customized
Origin
China
Production Capacity
500000km/Month
Product Description
12FO Aerial armored OM3 OM4 GYXTW Multimode Fiber Cable
Product Description
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Detailed Photos
Fiber Specifications:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20ºC) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| Bandwidth (Class A) | @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | |||
Product Features
Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Specially designed compact structure is good at preventing loose tubes from shrinking
· Crush resistance and flexibility
· PE sheath protects cable from ultraviolet radiation
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
Product Parameters
|
Cable Type |
Fiber Count |
Loose tube count |
Filler count |
Cable Diameter |
Cable Weight Kg/km |
ensile Strength |
Crush Resistance |
Bending Radius |
|
GYTS-2~6 |
2~6 |
1 |
4 |
9.5 |
116 |
1000/2000 |
1000/2000 |
15D/30D |
|
GYTS-8~12 |
8~12 |
2 |
3 |
9.5 |
116 |
1000/2000 |
1000/2000 |
15D/30D |
|
GYTS-14~18 |
14~18 |
3 |
2 |
9.5 |
116 |
1000/2000 |
1000/2000 |
15D/30D |
|
GYTS-20~24 |
20~24 |
4 |
1 |
9.5 |
116 |
1000/2000 |
1000/2000 |
15D/30D |
|
GYTS-26~30 |
26~30 |
5 |
0 |
9.5 |
116 |
1000/2000 |
1000/2000 |
15D/30D |
|
GYTS-32~36 |
32~36 |
5 |
0 |
9.5 |
116 |
1000/2000 |
1000/2000 |
15D/30D |
|
GYTS-38~48 |
38~48 |
5 |
0 |
9.5 |
116 |
1000/2000 |
1000/2000 |
15D/30D |
|
GYTS-50~60 |
50~60 |
5 |
0 |
9.5 |
116 |
1000/2000 |
1000/2000 |
15D/30D |
|
GYTS-62~72 |
62~72 |
6 |
0 |
10.0 |
159 |
1750/3500 |
1000/2000 |
15D/30D |
|
GYTS-74~84 |
74~84 |
7 |
1 |
11.0 |
209 |
1750/3500 |
1000/2000 |
15D/30D |
|
GYTS-86~96 |
86~96 |
8 |
0 |
11.0 |
209 |
1750/3500 |
1000/2000 |
15D/30D |
|
GYTS-98~108 |
98~108 |
9 |
1 |
12.5 |
232 |
1750/3500 |
1000/2000 |
15D/30D |
|
GYTS-110~120 |
110~120 |
10 |
0 |
12.5 |
232 |
1750/3500 |
1000/2000 |
15D/30D |
|
GYTS-122~132 |
122~132 |
11 |
1 |
13.5 |
280 |
1750/3500 |
1000/2000 |
15D/30D |
|
GYTS-134~144 |
134~144 |
12 |
0 |
13.5 |
280 |
1750/3500 |
1000/2000 |
15D/30D |
|
GYTS-146~216 |
146~216 |
12 |
0 |
13.5 |
280 |
1750/3500 |
1000/2000 |
15D/30D |
storage/Operating Temperature : -40ºC to + 70ºC
